Goal 3

Created miércoles 13 mayo 2015

Goal 3: Photographic sampling for vegetation inventory

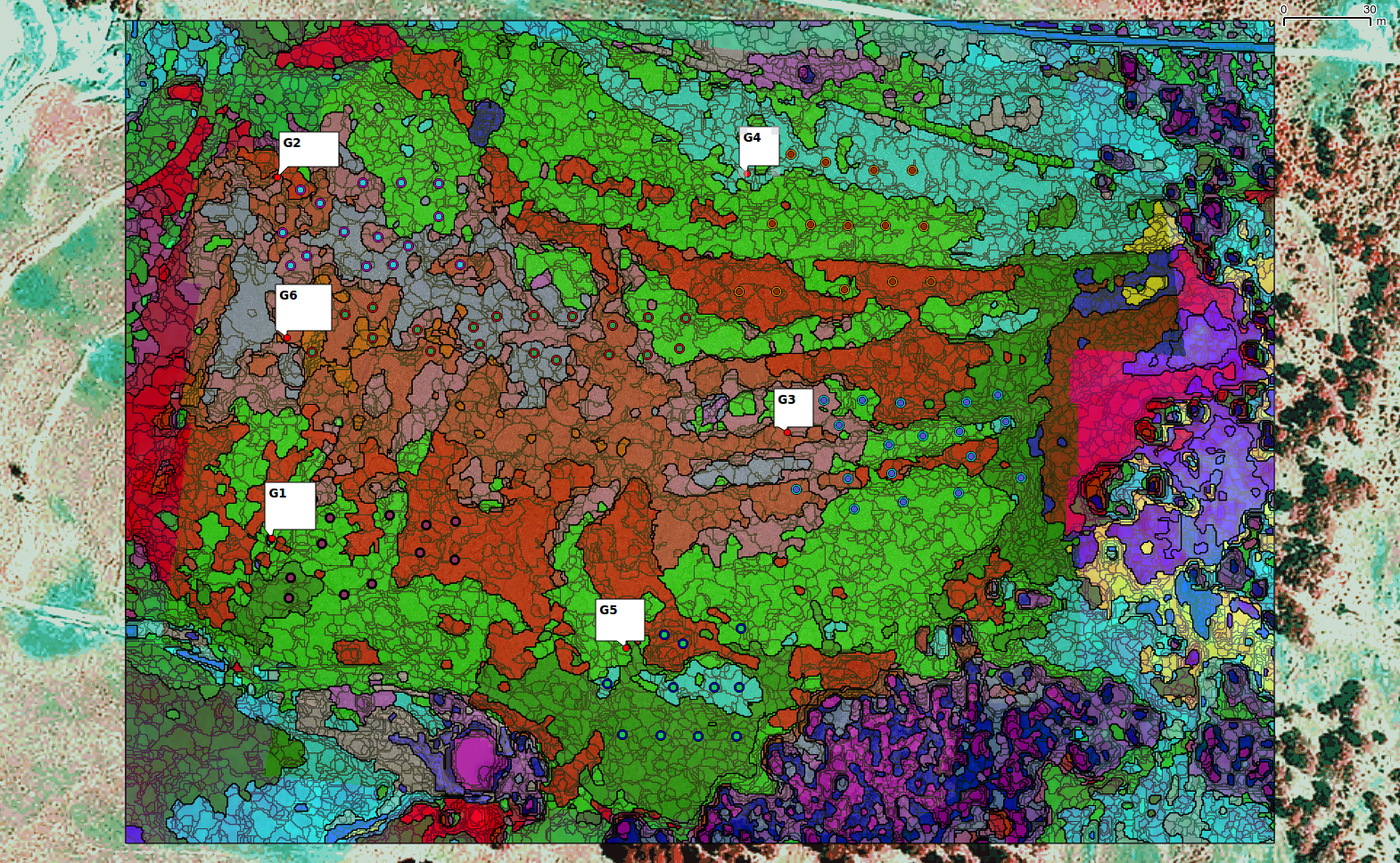

RGB photography to interpret multispectral classification

Specification of Final product 3:

• Same as Goal 2. Must match or outperform the 2013 product of Bertolina2013
  • Photo DSC01547.JPG (4912 x 3264 pixels) taken from 4.375m agl covering 6.48 m x 4.26 m with 1.319 mm resolution
  • Download Full resolution image (4912 x 3264)

3.1. Flight characteristics and equipment

• Area to be covered: X photosspread on the grassland according to an stratified sampling ALOBO?
  • Shapefile with Positions TBD
• Camera: Sony NEX 7n
• Focal: 18 mm
• Speed: 1000
• Aperture: Automatic
• Ginbal: designed for Sony NEX
• Height: 5 m

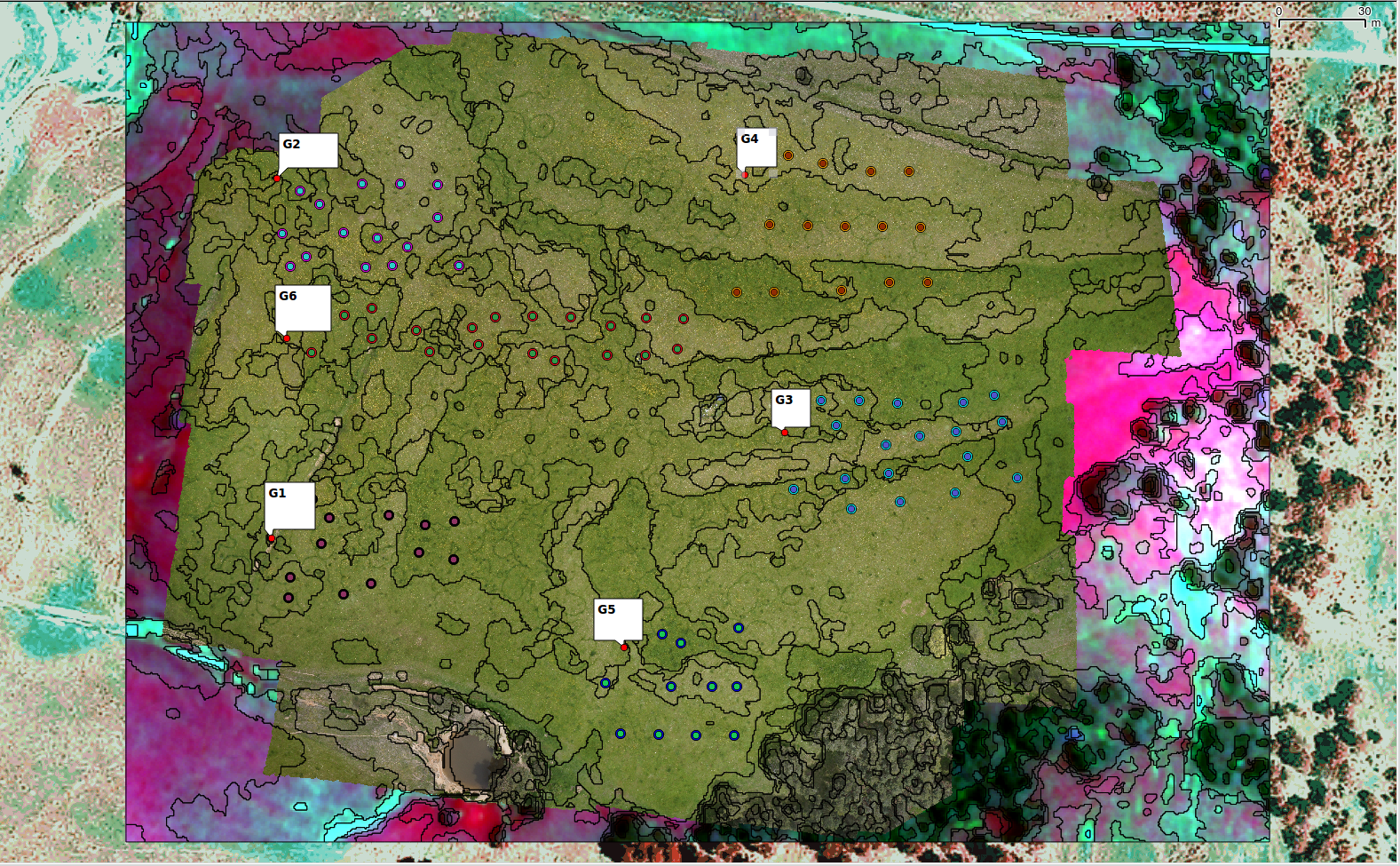

2.2. Sites

• CSV files with Positions (Geographic coordinates in WGS84)
• Shapefiles with positions

3.3 Deliverables

Images and necessary files for approximate positioning and orientation

• X images of XXX cm * YYY cm and xxx resolution HEMAV?
• No overlap among images
• File 1 with
  • image name
  • time of acquisition
  • X coordinate of image center
  • Y coordinate of image center
  • Z coordinate of image center
  • pitch
  • rol
  • yaw

3.3 Field work

• Sites: subsample of points on grids TBD

Notes on vegetation composition and structure WHO?? TERESA?? BOTANICA UB???
